Icom IC-PW1 HF Power Amplifier

5332

ICOM logoWide frequency coverage with 1 KW output

All HF bands plus 50 MHz are covered. The IC-PW1 provides a stable, clean and low distortion 1 kW from 1.8 MHz to 50 MHz*. In addition, full duty cycle (even during more demanding RTTY or SSTV operation) and full break -in operation are possible. Great for DX’peditions or contest operation.



Wide ALC adjustable range

Internal circuitry allows the ALC to be adjusted over a wide range. This means that the IC-PW1 can be used with almost any HF, 6 m or HF/6 m rigs – not only Icom rigs

Compact body

Dimensions, including amplifier, power supply, tuner and controller, are only 350(H) x 269(W) x 378(D)mm* And, because the controller is detachable, the IC-PW1 can be installed almost anywhere in your shack.

Other outstanding features

  • Automatic antenna tuner built-in
  • Automatic AC input voltage selector is employed
  • Current (Ip), Voltage (Vp), temperature, SWR and output power protectors are available

ICOM IC PW-1 links

from our Icom IC-PW1 link category

DX4Win and Icom PW-1
DX4Win and Icom PW-1
Using DX4WIN with ICOM radios and the ICOM PW-1 RF power amplifier...

Icom PW-1 repair notes
Icom PW-1 repair notes
Repairing instruction of the Icom PW-1 amplifier to solve the issue where the red protection LED comes on with SEND and the b...

Controlling the PW-1 Amplifier
Controlling the PW-1 Amplifier
Configuring dxlab commander to properly control the Icom PW-1 power amplifier...

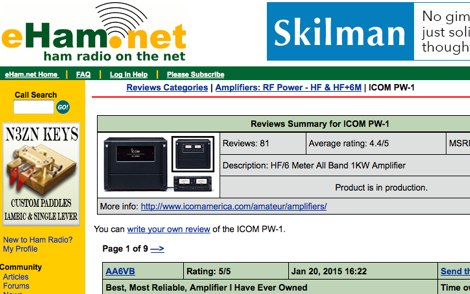

Icom PW-1 review
Icom PW-1 review
Icom PW-1 1kw Linear Amplifier described by WA0SXV...
